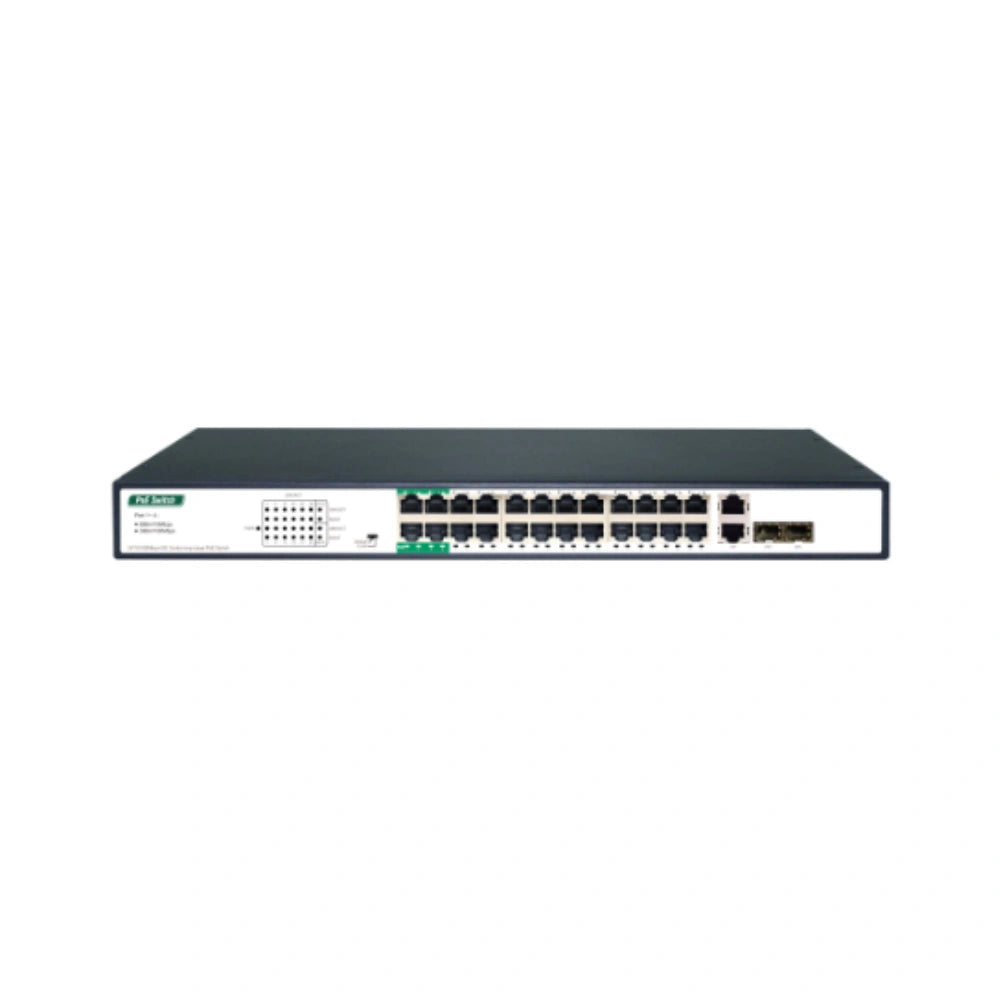

UNIPOE Fast Ethernet POE Switch-PM3028FSNR_V1

UNIPOE Fast Ethernet POE Switch-PM3028FSNR_V1

$999.00
$999.00
Sale Sold out
Shipping calculated at checkout.

Overview

Standard 1U 19-inch Rack-Mountable Equipment
24 × 10/100 Mbps PoE RJ45 Ports
2 × 1000 Mbps TP/SFP Combo Ports
Fixed Single AC Power Supply Design
View full details

PM3028FSNR V1 PoE Switch is 24-port 10/100Mbps PoE + 2G Combo Ethernet Switch. Among them port1-8 PoE ports support long-distance transmission of 800 meters(optional)(with long-range Equipment)， The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.
The PoE Switch provides a simple, cost- effective, and non-blocking wire-speed performance with 19-inch metal shape for rack deployment in office or department network application.

Standard 1U 19-inch Rack-Mountable Equipment
24 × 10/100 Mbps PoE RJ45 Ports
2 × 1000 Mbps TP/SFP Combo Ports
Fixed Single AC Power Supply Design

Dimensions(L*W*H) 440*207*44mm
Weight ?
Management interface \
Interface 24*10/100Mbps POE RJ45 port
2*10/100/1000Mbps TP/SFP Combo port
Switching Capacity 8.8Gbps
Packet Forward Speed 6.5Mpps
Operating Temperature
 0°C to 40 °C
Storage Temperature -40 to 70 ºC
Storage Humidity 5 to 90% (non-condensing)
(ns)
CPU
Memory
Flash
Packet Buffer
Power Input AC AC 100-240V  50/60Hz
\
DC \
High voltage DC \
Dual power input NO(Single power input)
Power hot-plug NO(fixed power supply）
Typical power consumption -
Maximum Power Consumption 270W /  400W(optional)
PoE Power Output 32W
PoE Power Budget 250W / 370W(optional)
MTBF(hours) >50000
MTBF(years)
