UNIPOE Fast Ethernet POE Switch-PM3027FSNR_V1

UNIPOE Fast Ethernet POE Switch-PM3027FSNR_V1

$999.00
$999.00
Sale Sold out
Shipping calculated at checkout.

Overview

Standard 1U 11-inch Device
24 × 10/100 Mbps PoE RJ45 Ports
1 × 1000 Mbps Base-T Port
1 × 1000 Mbps Combo Port
Fixed Single AC Power Supply Design
View full details

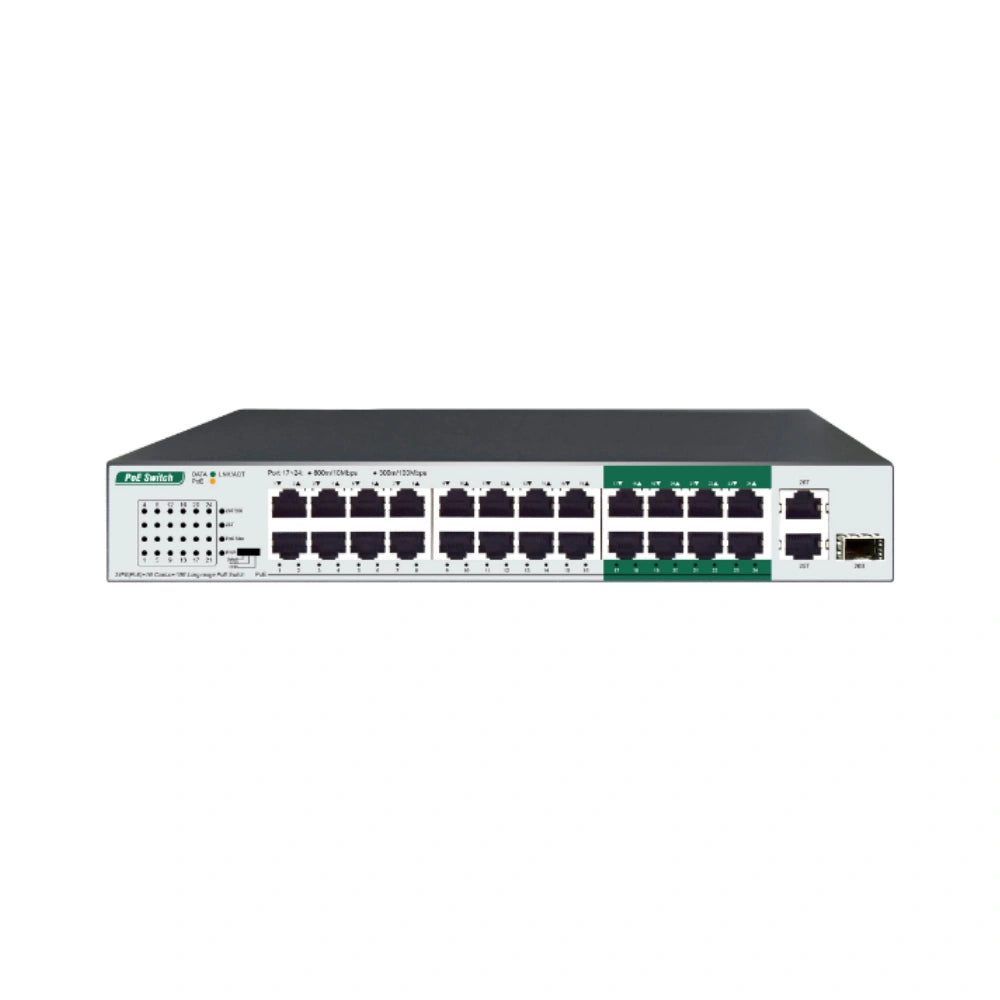

PM3027FSNR V1 is an unmanaged Long-range PoE Switch independently developed by UNIPOE. It has 24*10/100Mbps adaptive RJ45 ports, 1*1000Mbps Combo port and 1*1000Mbps RJ45 port, each of which supports MDI/MDIX automatic flip and wire-speed forwarding. Ports 1-24 have the PoE power supply function, which supports IEEE 802.3af/at standards. Ports 17-24 can be selected to support long-distance transmission up to 800 meters (used with remote devices). Ports 17-24 can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables.

Standard 1U 11-inch Device
24 × 10/100 Mbps PoE RJ45 Ports
1 × 1000 Mbps Base-T Port
1 × 1000 Mbps Combo Port
Fixed Single AC Power Supply Design

Dimensions(L*W*H) 280*180*44mm
Weight
Management interface
Interface 24*10/100Mbps POE RJ45 ports
1*1000Mbps Combo port
1*1000Mbps RJ45 port
Switching Capacity 8.8Gbps
Packet Forward Speed 6.55Mpps
Operating Temperature
 0°C to 40 °C
Storage Temperature -40 to 70 ºC
Storage Humidity 5 to 90% (non-condensing)
(ns)
CPU
Memory
Flash
Packet Buffer
Power Input AC AC 100-240V  50/60Hz
\
DC \
High voltage DC \
Dual power input NO(Single power input)
Power hot-plug NO(fixed power supply）
Typical power consumption
Maximum Power Consumption 240W / 200W(optional)
PoE Power Output 30W
PoE Power Budget 225W / 185W(optional)
MTBF(hours) >50000
MTBF(years)
