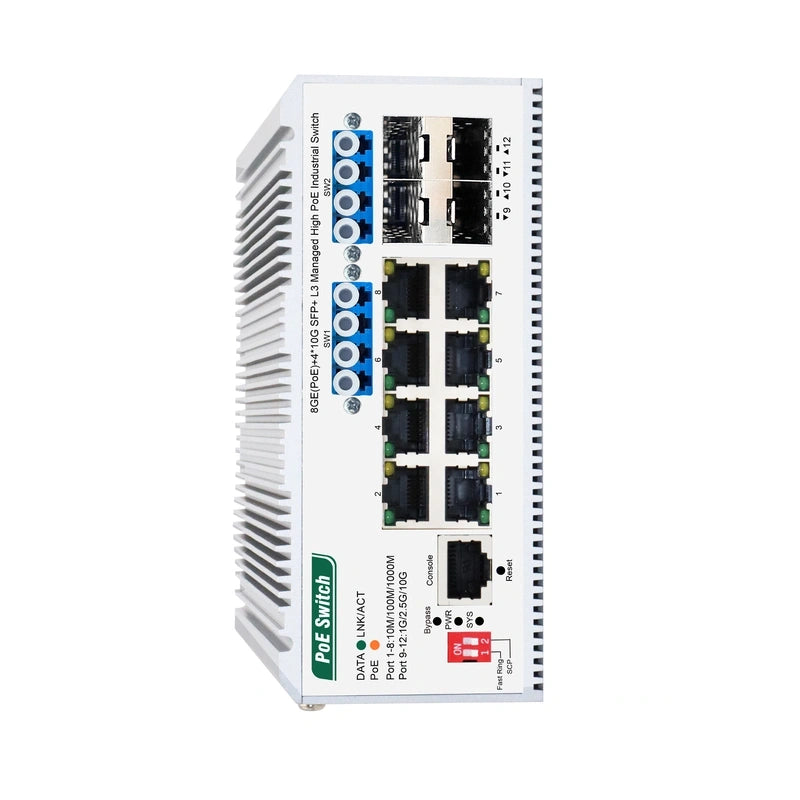

8GE(POE)+4*10G SFP+L3 managed high-power PoE industrial switch

8GE(POE)+4*10G SFP+L3 managed high-power PoE industrial switch

$999.00
$999.00
Sale Sold out
Shipping calculated at checkout.

Overview

PoE supports IEEE802.3bt standards, with a maximum output of 90W per port.
Data transmission and power supply distance up to 100 meters;
Support IEEE802.3x full duplex flow control and Backpressure half duplex flow control;
Panel indicator to monitor working status and help fault analysis;
Aluminum alloy high energy roof heat conduction groove design;
Supports one-key ring network and one-key storm suppression function, with redundant design and high reliability;
High reliability design, support the traditional STP/MSTP/RSTP Layer 2 link protection technology;
Supports static aggregation and dynamic aggregation (LACP), which increases link bandwidth, improves link reliability, implements load balancing, and link backup.
Flexible and convenient management and maintenance Support Console, Telnet, SSH and other management modes;
Supports WEB management, which is simple and efficient, and convenient for installation and commissioning by engineering and maintenance personnel.
Supports HTTP, TFTP, and FTP file upload and download management.
View full details

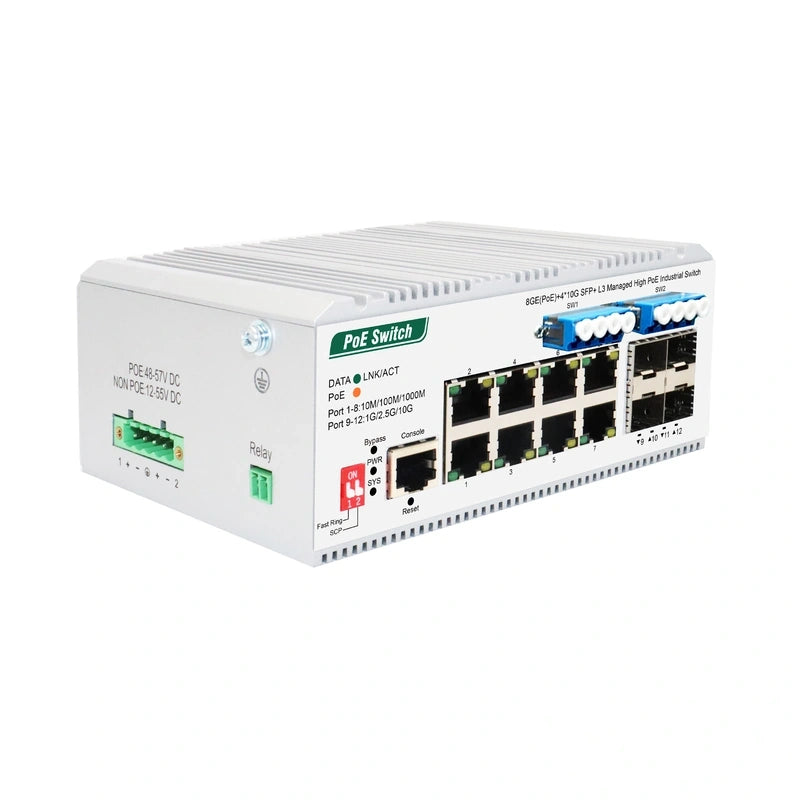

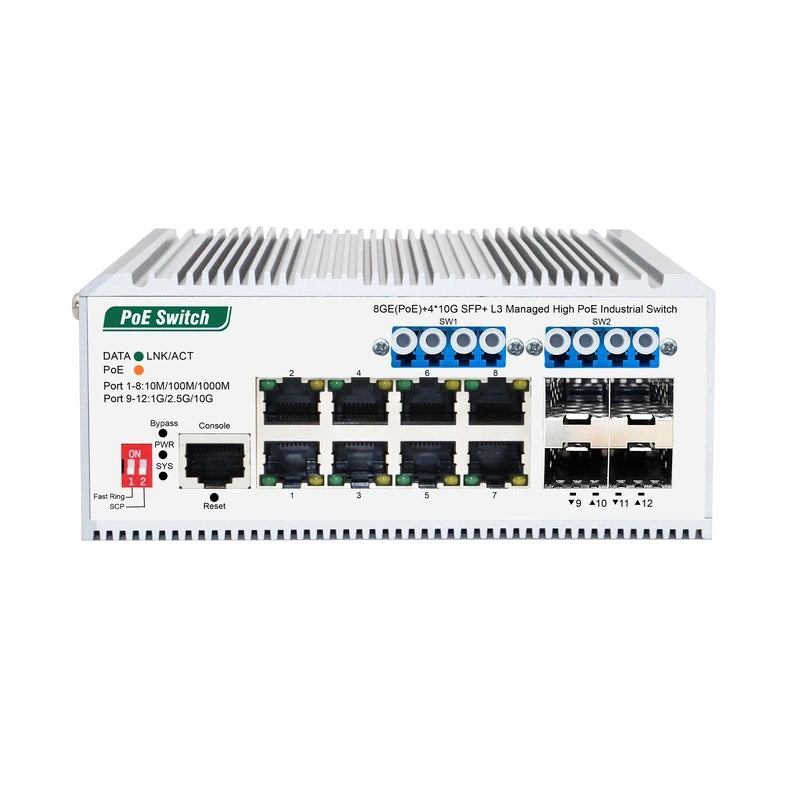

PM9012GTMI-4F-B-V1 is our independent research and development of L3 management of high-power PoE industrial switch, with 8*10/100/1000Mbps RJ45 ports and 4*1G/2.5G/10Gbps SFP+ optical fiber module expansion slots and 1 Console port and 2 LC interface Bypass junctions, flexible expansion of your network. Ports 1-8 have PoE power supply function, which conforms to IEEE802.3 af/at/bt standard; Support static routing function, can automatically isolate the power failure node, to achieve power failure, fiber break dual protection, in the equipment failure (power interruption, hardware failure), will bypass the fault node transmission to avoid the entire network communication breakdown; It provides comprehensive security policies, QoS policies, and rich VLAN functions.  It has the ring network function and can form a ring network.  Switches form a ring network topology by holding hands with each other, Its redundancy and high reliability can ensure that data forwarding on the network will not be affected when a link in the ring network is disconnected.

PoE supports IEEE802.3bt standards, with a maximum output of 90W per port.
Data transmission and power supply distance up to 100 meters;
Support IEEE802.3x full duplex flow control and Backpressure half duplex flow control;
Panel indicator to monitor working status and help fault analysis;
Aluminum alloy high energy roof heat conduction groove design;
Supports one-key ring network and one-key storm suppression function, with redundant design and high reliability;
High reliability design, support the traditional STP/MSTP/RSTP Layer 2 link protection technology;
Supports static aggregation and dynamic aggregation (LACP), which increases link bandwidth, improves link reliability, implements load balancing, and link backup.
Flexible and convenient management and maintenance Support Console, Telnet, SSH and other management modes;
Supports WEB management, which is simple and efficient, and convenient for installation and commissioning by engineering and maintenance personnel.
Supports HTTP, TFTP, and FTP file upload and download management.

Product Specifications

Model

PM9012GTMI-4F-B-V1

Standard

IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3x,IEEE802.1X,IEEE802.1q ,

IEEE802.1p,IEEE802.1d,IEEE802.1w, IEEE802.3ad,IEEE802.3af,IEEE802.3at, IEEE802.3bt

Interface

8*10/100/1000Mbps RJ45 Ports

4* 1G/2.5G/10Gbps SFP+ Slots

1*Console Port

2* LC interface Bypass junctions,

Network Media

10BASE-T:UTP category 3,4,5 cable（≤100m）

100BASE-TX:UTP category 5, 5e cable（≤100m）

1000BASE-X:UTP category 5e, 5 cable（≤100m）
1000BASE-X:MMF, SMF

10GBASE-X:MMF, SMF

10GBASE-SR: OM1/OM2/OM3 or higher MMF (2m ~ 300m)

10GBASE-LR: IEC B1.1 and B1.3 SMF (2m ~ 10000m)

Indicator

Power (green), LNK/ACT (green), PoE (orange), SYS (green), Bypass (green)

MAC Address Table

16K, Auto-learning, Auto-update

Jumbo Frame

12KByte

Packet Buffer

12Mbit

Transfer Mode

Store-and-forward

Switching Capacity

96Gbps

Packet Forward Speed

71.42Mpps

Dimensions(L*W*H)

145*109*62mm

Input voltage

48-57V DC

Input Power Supply

Port 1-8

PoE Output

90W(Max)

PoE Power On RJ45

1/2(+)，3/6(-)4/5（-），7/8（+）

PoE Power Budget

320W

Power Supply

350W

Operating Temperature

-40°C ~ 75°C

Storage Temperature

-40°C ~ 80°C

Operating Humidity

5% ~ 95% non-condensing

Storage Humidity

0% ~ 95% non-condensing

Surge Protection

Differential mode ±2KV , Common mode ±6KV

Electrostatic Standard

Contact ±6KV, Air ±8KV

MTBF

>50000 hours

Hardware function


Software Specification

L3 Features

DHCP Server

DHCP Server

DHCPv6 Server

Route

Static Route(IPV4/IPV6)

Route Aggregation

RIP

RIP v1/v2/RIPng

OSPF

OSPF v2/v3

BGP

BGP4/BGP6

VRRP

IPv4/IPv6 VRRP

PIM

IPv4/IPv6 PIM

Stacking

Stacking VSF

L2 Features

MAC Address Table

MAC Aging Time

MAC Filter

MAC Notification

Basic Management

Console/Telnet/SSH

Http/Https、SSL/TLS

FTP/TFTP

Syslog

SNMP(v1/v2c/v3)、SNMP Trap

RMON

SNTP/NTP

CPU protect

Software/Hardware watchdog

Firmware Upgrade/Backup

Ping/Traceroute

Onvif

ZTP

Port Config

Bandwidth Control

Flow Control

EEE

MTU

CFM(802.1ag)

EFM OAM(802.3ah)

DDM

Storm Control

Port Isolation

Port Security

Virtual Cable Test

ULDP/Cisco UDLD

Discovery

LLDP(802.1ab)

LLDP-MED

Link Aggregation

Static

LACP(802.3ad)

Load Balance(src-mac/dst-mac/src-ip/dst-ip)

Max groups and ports per group

VLAN

VLAN(802.1Q 4K)

Access/Trunk/Hybrid

Private VLAN

VLAN Filter

MAC-based VLAN

Protocol-based VLAN

IP Subnet-based VLAN

Voice VLAN

GVRP/GMRP

QinQ/Selective-QinQ/Flexible QinQ

VLAN Translation/N:1 VLAN Translation

Guest VLAN

Network Loop Detection

Loopback Detection

ERPS

Spanning Tree

STP/RSTP/MSTP

MSTP Support 64 instance

BPDU Guard/Root Guard/BPDU Tunnel

ARP

Static ARP

ARP Scanning Prevention

ARP Spoofing Prevention

ARP Guard

Gratuitous ARP

Dynamic ARP Inspection

ARP Quantity Control

IPv4 Related Function

ICMP

Anti ICMP Attack

ICMP Rate Limit

ICMP Unreachable Drop

Control Multicast

DCSCM

Multicast VLAN

Multicast VALN

IGMP

IGMP SNOOPING V1/V2/V3

Fast Leave

IGMP Proxy

DHCP

DHCP Client/BOOTP

DHCP Relay

DHCP Snooping

DHCP Option 82/43/60/61/67

IPv6 Related Function

IPv6 Basic

IPv6 ND Snooping

DHCPv6

DHCPv6 Relay

DHCPv6 Snooping

IPv6 SAVI

Security RA

jiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantoujiantouIPv6 Multicast Routing

MLD v1/V2 Snooping

IPv6 Features

SNMP over IPv6 Support

HTTP over IPv6 Support

SSH over IPv6 Support

DNS over IPv6 Support

IPv6 ping/traceroute Support

IPv6 Telnet Support

IPv6 Radius+ Support

IPv6 Tacacs+ Support

IPv6 SNTP/NTP Support

IPv6 FTP/TFTP Support

IPv6 IPSec Support

IPv6 ACL

QoS(Quality Of Service)

Basic

Trust COS/DSCP

Trust Port

Scheduling

SP

WRR

WDRR

PolicyMap Stream

Based on VLAN

Based on COS/DSCP

Aggregate PolicyMap

Ingress PolicyMap

Policing

CAR Stream Shaping(leak algorithm)

Ingress Policing

Rewrite

COS/802.1p Priority

IP Precedence

IPv4 DSCP/IPv6 DSCP

drop-precedence

internal-priority

Ingress/Egress Rewrite

Queuing

DSCP to DSCP mapping

DSCP to DP mapping

DSCP to Queue mapping

COS to DP mapping

COS to Queue mapping

ACL

jiantoujiantoujiantoujiantouIP-ACL

SIP/DIP

IP Protocol

IP Priority(DSCP,TOS, Precedence)

TCP,UDP src,dst Port

MAC-ACL

SRC/DST MAC

VLAN

COS

Tag/Untag

IP-MAC ACL

MAC-ACL and IP-ACL

User-defined ACL

Base on user defined profile

ACL Features

Based on time period ACL

ACL on VLAN

Based on ACL Stream

Security

802.1x

Port Based Authentication

Support EAPoR

MAC based Authentication

Guest VLAN

MAB

Based on Port Authentication

Based on MAC Authentication

MAC Address Count Limit

Based on Port

Based on VLAN

IP Address Count Limit

Based on Port

Based on VLAN

Access Management

Based on source mac and IP address

Deny DoS Attack

TCP Flag

TCP Flagment

IP Segment

ICMP

TACACS+

Standard Support

Radius

Standard Support

Client, Support MD5

SSL

Openssl 1.1.0

Redundancy Related Function

MRPP

Compatiable ERRP

ULPP

Uplink Protection Protocol

Smart Link/Monitor Link

ULSM

Uplink State Monitor

Flow Monitor Function

Mirror

Support one to one, multi to one

Port based mirror, support ingress, egress, and both

CPU based mirror

Flow based mirror

RSPAN

PoE

PoE Management

ON/OFF Config

Alive Checking for PD

7/24 On/Off Scheduling
